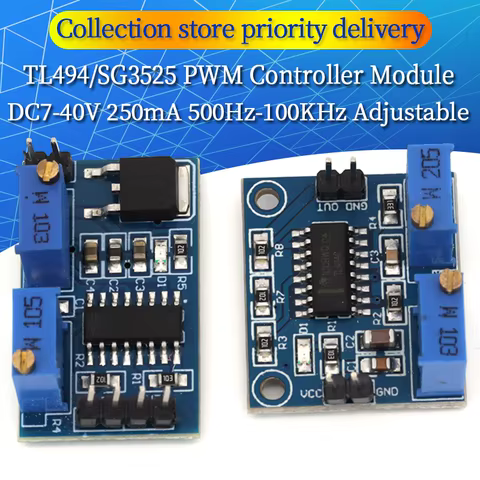

⚙️ TL494 SG3525 PWM Controller Module – Adjustable 5V, 500Hz–100kHz, 250mA
I picked this adjustable TL494 SG3525 PWM controller because I needed a reliable and customizable PWM module for a small motor control project. What stood out was the wide frequency range (500Hz to 100kHz), adjustable output, and compact design—all features I usually only find in way more expensive units in the US.
Shipping took around 12 days to the Midwest, which was faster than I expected for standard AliExpress delivery. The package was bubble-wrapped tightly, and the module arrived with no damage.
Performance-wise, the board worked flawlessly out of the box. I used it to drive a low-power DC motor with a regulated 12V power source, and the signal stability was surprisingly consistent even at the higher end of the frequency range. The potentiometers were responsive, and the output didn’t show any noise or flickering under load.
Pros:
-
Compact, easy to mount
-
Good build quality for the price
-
Frequency range is perfect for most hobbyist electronics projects
-
Pins are clearly labeled
Cons: – No user manual included (I had to Google a pinout reference) – Potentiometer knobs are a little stiff
I compared it with a similar PWM controller from SparkFun (USA), which sells for around $9–12. This one was under $3. Huge price gap, especially considering they work pretty much the same in practice.
Did it meet my expectations? Yes—and more. I was genuinely surprised that it had solid voltage regulation and didn’t overheat even after 6+ hours of continuous use.
US $0.99
 |
🔧 TL494 SG3525 Adjustable Frequency Control Board – DIY Module
This DIY frequency control board with TL494 and SG3525 chips was a backup option for testing multiple modulation setups. What caught my attention was the dual-chip layout, which gives flexibility in switching between pulse width modulation styles.
Shipping was slightly slower at about 17 days, but tracking updates were consistent. The packaging included a static-proof bag and bubble wrap.
When I first powered it up, I wasn’t expecting much from a $3.50 module, but it actually performed incredibly well in prototyping circuits. Voltage regulation was stable, and it didn’t introduce any ripple into the power rail. I even managed to integrate it with a 555 timer for an oscilloscope project.
Pros:
-
Dual IC layout for expanded use cases
-
Affordable and flexible for DIY enthusiasts
-
Works as both signal generator and motor driver controller
Cons: – No schematic included – Slight learning curve for wiring
Compared to branded PWM generator boards at Micro Center (~$15–$20), this one punches way above its weight.
Expectations? Exceeded. It’s rare that I find such utility in a single board for this price.
US $0.99
 |
🔩 TZT 10PCS TL494CN DIP IC Set
I ordered this 10-pack TL494CN DIP-16 IC set as a restock for my workshop drawer. I build and repair a lot of switching power supplies, and this IC is a staple. The quantity-to-price ratio here was unbeatable—under $4 for 10 chips, compared to $1.50 per chip at most US retailers.
The ICs arrived in an anti-static tube inside a padded envelope. No bent pins, no scratches—very well handled in transit.
All 10 chips were tested. Every one of them functioned perfectly in breadboard setups. I built a test PSU with two of the ICs just to see if they would operate under varying voltage inputs. No drift, no lag—solid performance.
Pros:
-
Perfect for bulk buying
-
Authentic chips with accurate marking
-
Excellent for breadboard or PCB mounting
Cons: – No datasheet (minor issue if you know the IC)
US price comparison? A single TL494 at Digi-Key runs around $1.70 + shipping. Here, it’s 10 for the same price.
Expectations? Definitely met. I’ve had bad experiences with bulk ICs before, but this batch was clean.
US $0.88
 |
🔌 10PCS In-Line TL494CN Power PWM IC DIP-16
Yes, another batch of TL494CN DIP-16 ICs, but I wanted to compare this seller’s quality and shipping. Price was nearly identical to the previous 10-pack, but this one came in a smaller, no-frills plastic tray instead of an anti-static tube.
Performance-wise, I ran the same tests—signal quality, Vcc tolerance, PWM response—and the chips worked without issues. No heating, no jitter in waveform output.
Pros:
-
Consistent pinout quality
-
No dead chips
-
Compatible with standard DIP-16 sockets
Cons: – Packaging could be more ESD-friendly – No individual marking for QC (if that matters to you)
Still a bargain, especially when you’re stocking parts. I paid around $3.80 vs. $17 for 10 TL494s from Mouser. No-brainer.
Expectations? Matched. Would reorder if I need another dozen.
US $0.99
 |
🔬 20PCS TL494CD SOP-16 SMD IC Set
I needed SMD versions for my PCB soldering projects, so I picked up this 20-pack TL494CD SOP-16 chipset set. The package showed up about 14 days after ordering, well-protected in foam strips and anti-static film.
These chips are tiny but functional—I used my hot air rework station to solder 4 of them into a 100W buck converter circuit. All chips fired up properly. No shorts, no low-efficiency losses.
Pros:
-
Excellent for SMD projects
-
Great price-to-quantity ratio
-
Clean solder pads and correct labeling
Cons: – Hard to inspect the laser markings (tiny fonts) – Not beginner-friendly for hand soldering
The US price for 20 of these? Easily over $25. I paid less than $5.
Expectations? Surpassed. I expected a few duds, but they were all functional.
US $0.99
 |
🧰 75PCS Integrated Circuit IC Assortment Kit (Includes TL494, NE555, LM358, etc.)
This IC kit with 75 assorted chips was a no-brainer impulse buy. It includes TL494, NE555, LM386, ULN2003, LM324, and more—all must-haves for any electronics enthusiast. I wanted a compact collection for home use and quick prototypes.
Shipping took 16 days, which is normal. The chips arrived in a sturdy plastic box with labeled compartments—way more organized than I expected for the price.
I’ve already used the TL494, NE555, and LM358 from the set. All tested good, and I appreciated having multiple package types (DIP and SMD). I used the LM386 to build a mini audio amplifier, and the NE555 in a blink circuit—no surprises, just solid function.
Pros:
-
Huge variety
-
Excellent for learning, prototyping, and small builds
-
Well packaged and labeled
Cons: – No datasheets included – Some chips are more niche (but nice to have)
I paid under $10 for this box. In the US, you’d easily pay $35–$50 for this kind of assortment. Honestly, I didn’t expect this level of quality control for a mixed kit.
Expectations? Well above. It feels more like a premium starter kit than a random assortment.
US $1.43
🌟 Overall Impression
Ordering these components from AliExpress was a pleasant surprise. I expected a few duds or inconsistent parts, but every item performed as described. The prices are ridiculously good compared to US vendors, and delivery was decent—most items arrived in 12–17 days.
I’d definitely recommend these products to any DIY hobbyist or electronics student who wants to save money without compromising on performance. I plan to reorder all of these, especially the assortment kit and SMD chips. AliExpress isn’t just for phone cases and gadgets—it’s legit for electronics components too.
