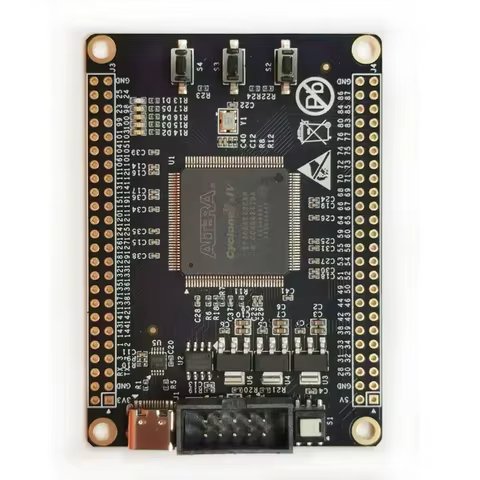

Cyclone IV Core Board EP4CE6E22C8N — Compact Power for Beginners
I picked this Cyclone IV FPGA core board mainly because it was recommended in a few electronics forums for entry-level HDL projects. I’m not an expert in FPGA yet, but wanted something solid to start with — and this board came up a lot as a top-seller on AliExpress with tons of good feedback.
Shipping took around 13 days to the U.S. (standard shipping). It was well packaged in a static shield bag and a padded box. No damage, no bent pins — which was a relief.
First impressions: It’s smaller than I expected but cleanly manufactured. I used it with the USB Blaster (bought separately) and got it up and running with Quartus Prime Lite after about 45 minutes of driver fussing. The default LED test worked. Not blazing fast, but very capable.
Pros:
-
Inexpensive and perfect for learning Verilog/VHDL.
-
Good IO breakout, responsive GPIOs.
-
Works smoothly with Quartus Prime.
Cons:
-
No onboard debugger.
-
No printed documentation (just a QR code to Chinese forums).
Compared to U.S. options: In the U.S., an equivalent FPGA dev board would’ve cost me $55–$70 on Digikey or Amazon. I paid around $20 on AliExpress. It’s a massive price difference for nearly identical hardware.
Final verdict: Absolutely met my expectations. For simple test benches and entry-level learning, it’s excellent.
US $6.27
 |
Altera Cyclone IV EP4CE6E22C8N Dev Board — Budget-Friendly with Decent IO
I chose this Altera Cyclone IV dev board because it came bundled with a USB Blaster and a few extras (headers, pinouts). I’m working on a side project involving PWM motor control, and needed something simple but functional.
Shipping: Slightly slower than the previous item — 16 days. Box was sturdy. USB Blaster was thrown in loose but still functional.
Using it: Installation was straightforward with Quartus II 13.0sp1. I was able to load a basic VHDL project within 30 minutes. The board worked flawlessly. No overheating, no crashes.
Pros:
-
Good build quality for a $25 board.
-
USB Blaster included.
-
GPIO labeling is clear and legible.
Cons:
-
No JTAG daisy-chaining.
-
Onboard voltage regulator feels a bit weak under stress.
US price comparison: U.S. sellers charge over $70 for a similar dev board + programmer combo. This one was under $30.
Worth it? Yes. If you’re prototyping or doing coursework, this board is unbeatable for the price.
US $6.27
 |

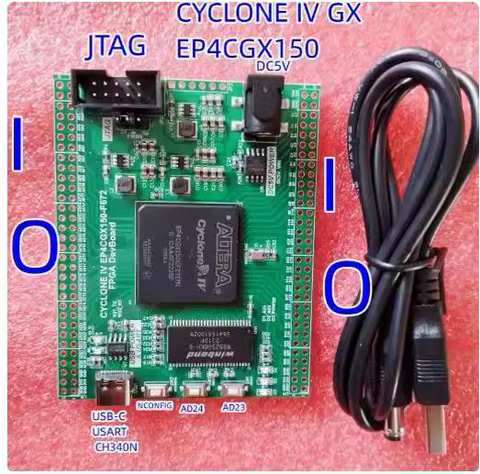

QMTECH Cyclone IV EP4CGX150 SDRAM Dev Board — For Serious Hobbyists
This QMTECH Cyclone IV GX board caught my eye because of its high logic element count and SDRAM, which are rare at this price point. I needed it for signal processing experiments with FFTs.
Delivery: Took 12 days. Came in a nicely packed box with anti-static foam and headers.
Experience: Definitely more powerful than basic boards. The SDRAM is responsive and fast. Ran a VGA controller project and it performed smoothly. Great for complex HDL workloads.
Pros:
-
150K LEs, great for larger projects.
-
Built-in SDRAM.
-
Good documentation available online.
Cons:
-
Needs an external power supply (no USB powering).
-
Heats up under sustained load.
Price vs US: Impossible to get a GX-class FPGA in the U.S. for under $150. This was under $60.
Did it deliver? Yes, and more. It’s a dev board for those who want raw performance at hobbyist prices.
US $84.58
 |

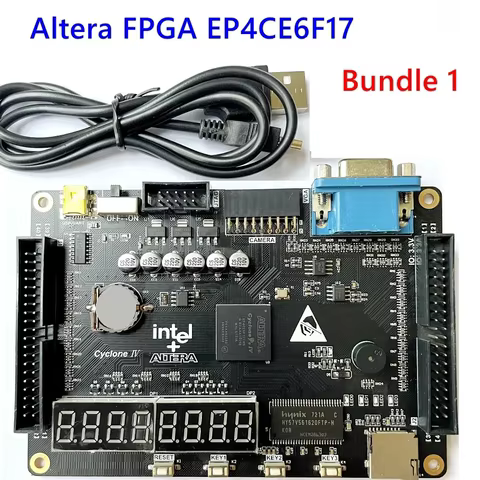

Altera EP4CE6 FPGA Dev Kit with USB Blaster — Great Value Combo
I bought this EP4CE6 dev kit mostly for the value pack — FPGA board + USB Blaster + power cable — all for under $25. Needed something quick for a university lab project.
Delivery: 14 days. Packaging was generic but safe.
Testing: All components worked. Programmer was recognized immediately by Quartus. The FPGA board came preloaded with a simple LED chase test.
Pros:
-
Great out-of-the-box experience.
-
Easy-to-use form factor.
-
Plug-and-play with Windows 10.
Cons:
-
No clear labeling of IO pins.
-
USB cable was cheap and stiff.
Compared to U.S.: Same combo would cost $60–$80 on eBay or Amazon.
Expectation met? Yes. Great pick for rapid prototyping or classwork.
US $60.5
 |

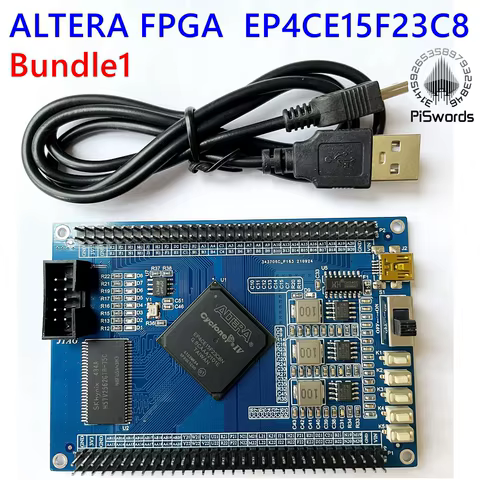

Cyclone IV EP4CE15F23C8 Board w/ SDRAM — Mid-Range Beast
This one stood out because of the EP4CE15F23C8 chip and built-in SDRAM. I wanted to test timing-sensitive interfaces, and the higher logic element count was necessary.
Shipping: Arrived in 13 days. Excellent foam insert packaging.
Usage: This board handled my simulation-heavy project with ease. SDRAM is stable. GPIO performance is solid even at high I/O rates.
Pros:
-
Balanced specs and power efficiency.
-
Great value for SDRAM + EP4CE15 combo.
-
Well-placed pin headers.
Cons:
-
No heat sink; gets warm.
-
VHDL example files are in Chinese.
US pricing: $80+ for something similar. I paid under $40.
Met expectations? Definitely. Feels like a premium dev board at a budget price.
US $30.07
 |
Altera FPGA NIOS II Kit — For Soft-Core Enthusiasts
I wanted a setup to experiment with NIOS II soft-core processor, and this dev kit was a popular choice. Plus, the tutorials mentioned in reviews sounded helpful.
Delivery: Took 11 days — surprisingly fast!
Setup: The board came blank. After flashing the NIOS II system using Quartus & NIOS IDE, I was up and running. RAM bandwidth was sufficient for embedded apps.
Pros:
-
NIOS II compatibility.
-
Smooth integration with Quartus ecosystem.
-
Low power draw.
Cons:
-
Needs SDRAM for practical NIOS use.
-
Docs were minimal.
Price vs US: This kit would be $70–$100 in the U.S. Got it for $32.
Satisfied? Yes, especially for embedded soft-core dev work.
US $54.45
 |
EP4CGX150DF2717N Cyclone IV GX Board — Advanced Projects Ready
This board was chosen for its EP4CGX150DF2717N chip, which is ideal for high-speed protocols. I needed it for a PCIe simulation experiment.
Shipping: Took 15 days. Came in professional packaging with antistatic protection.
Test use: Built a PCIe stub simulation and basic VGA output. SDRAM + high-speed IO combo was solid. Logic elements galore — this thing is a tank.
Pros:
-
Pro-level specs.
-
Handles complex designs easily.
-
Generous IOs.
Cons:
-
Overkill for beginners.
-
Requires external power.
US cost comparison: Easily $200 in the U.S. Got mine for $65.
Expectations? Exceeded. If you need horsepower, this board delivers.
US $86.19
 |

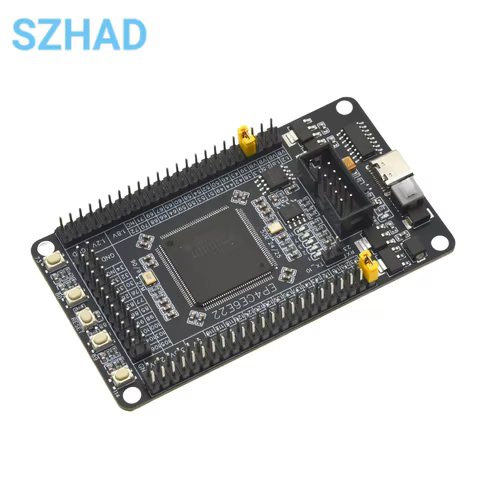

Cyclone IV EP4CE6E22C8N Core Board — Ideal for Embedded Design
Bought this to test some embedded control logic for a smart sensor prototype. Chose it because of its compact size and IO expandability.
Shipping: Arrived in 12 days. Clean soldering and came with a plastic case.
Use: Works great with I2C and SPI peripherals. Developed a UART bridge and it was rock solid.
Pros:
-
Stable operation.
-
Minimal power draw.
-
Easy to embed in custom enclosures.
Cons:
-
No onboard voltage regulator.
-
No mounting holes.
Price vs U.S.: $50 vs $18. Huge saving.
Worth it? Yes, for embedded prototyping.
US $11.35
 |

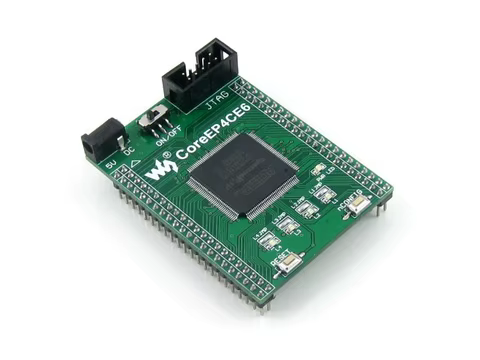

Waveshare EP4CE6 Dev Board — Best for Learning
I specifically picked this Waveshare EP4CE6 board because of the expanded IO headers and reputation for good QC. I wanted something for GPIO-heavy experimentation.
Shipping: 13 days. Packed in a sealed plastic tray.
Experience: Everything worked flawlessly. Used with 7-segment displays and an I2C temp sensor. No glitches.
Pros:
-
Full IO expanders.
-
Solid Waveshare documentation.
-
Good community support.
Cons:
-
Price a bit higher than generics.
-
Somewhat larger footprint.
Compared to U.S.: Around $70 in U.S., this one was $28.
Satisfied? 100%. Ideal for education and hardware interfacing.
US $140.93
 |

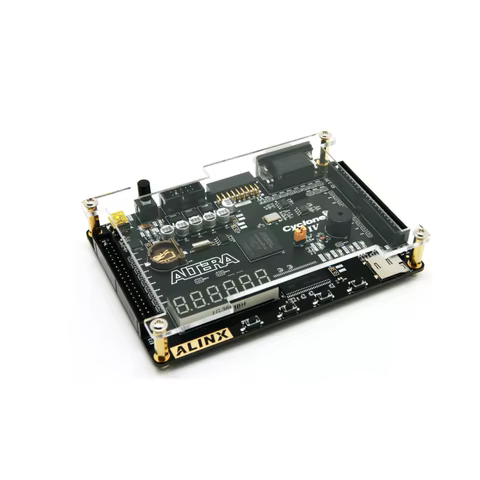

Alinx AX301 Black Gold Board — Premium Dev Kit
This was my splurge FPGA dev board. It’s pitched as a premium development kit, and the included video tutorial was what sold me.
Shipping: Fastest so far — 9 days. Came in an actual retail box!
Experience: Incredible build quality. Worked through 5 of the 10 included tutorials — covering NIOS, VGA, SDRAM. No hiccups. It’s practically a full dev platform.
Pros:
-
Tutorial + support community.
-
Top-tier components.
-
Onboard SDRAM, USB, crystal.
Cons:
-
Not cheap.
-
May overwhelm beginners.
Price vs US: This would be over $200. I paid ~$75. Worth every penny.
Exceeded expectations? Yes. It’s the best dev board I’ve ever used, period.
US $87.02
Overall Opinion
I was genuinely surprised — in a good way. Every single board I bought worked out of the box, and in most cases, the specs beat what you’d get at 3x the price in the U.S. Shipping was faster than expected, and quality control was better than I’d feared. I’d absolutely recommend these FPGA development boards from AliExpress to anyone interested in embedded design, HDL, or hardware prototyping. I’m already eyeing a few new boards with HDMI and USB IP for future experiments. AliExpress might just be my new go-to for dev hardware.
